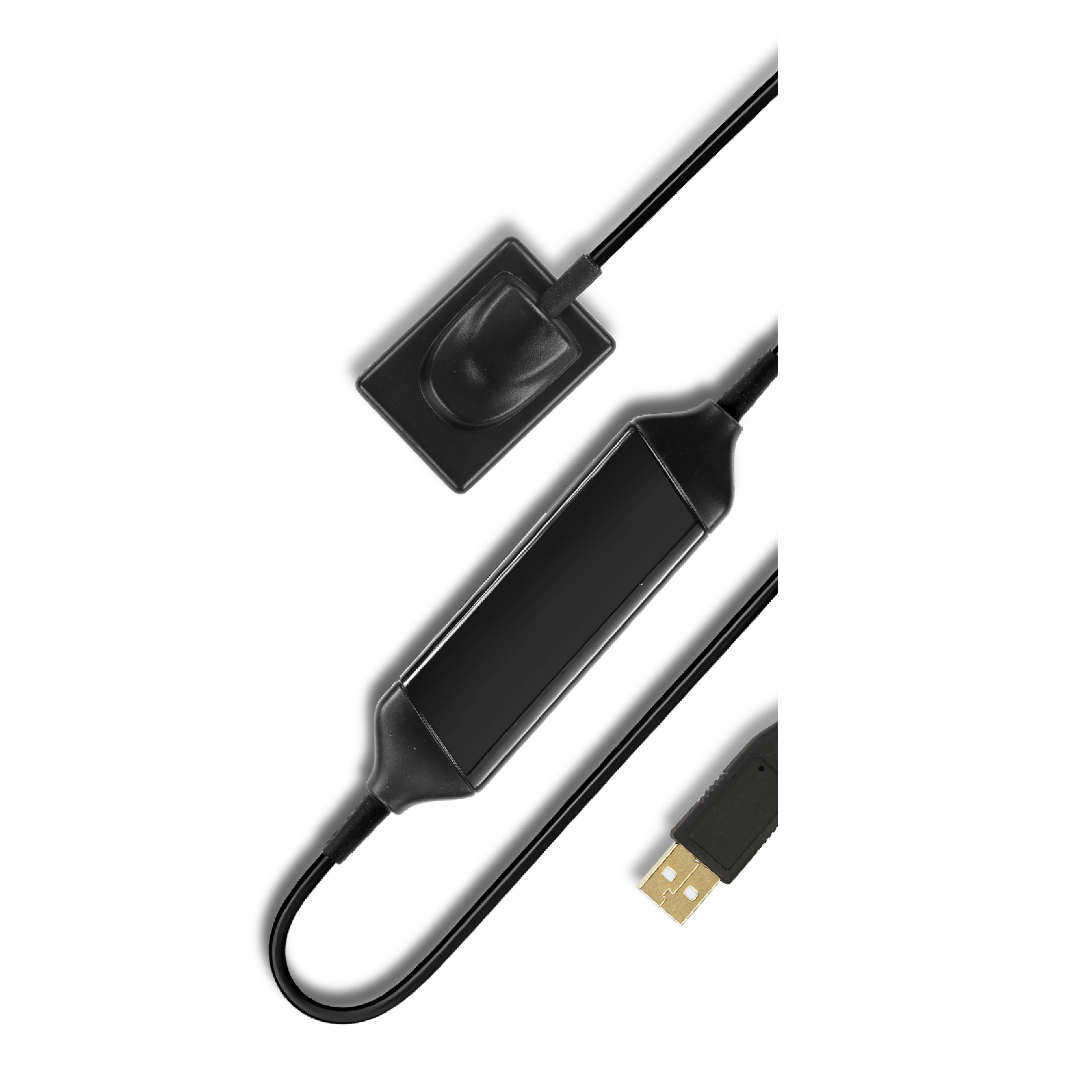

Smart Intraoral Sensor Size 1.3
Description
TECHNICAL PARAMETERS
Model : DS530
Chip Type : APS CMOS
Pixel Size : 18.5um
Dimension : 39×28.5x6mm
Active Area : 30×22.5mm
Active Pixel Array : 1600x1200mm
Image Pixel : 1604x1204mm
Voltage ( Through USB Connection ) : 5.0 V + 0.5V
Electricity Current ( Through USB Connection ) : <500mA
Power : <1W
Digitization : 12/14/16 Bit
Imaging Time : 3-4s
Resolution : 27 Lp / Mm
Signal Output : USB
Operation system: Windows 7 and above 32/64 bit
SENSOR WITH REPLACEABLE CABLE
1. Adopt Strong Tear – Resistant PU As Sheath

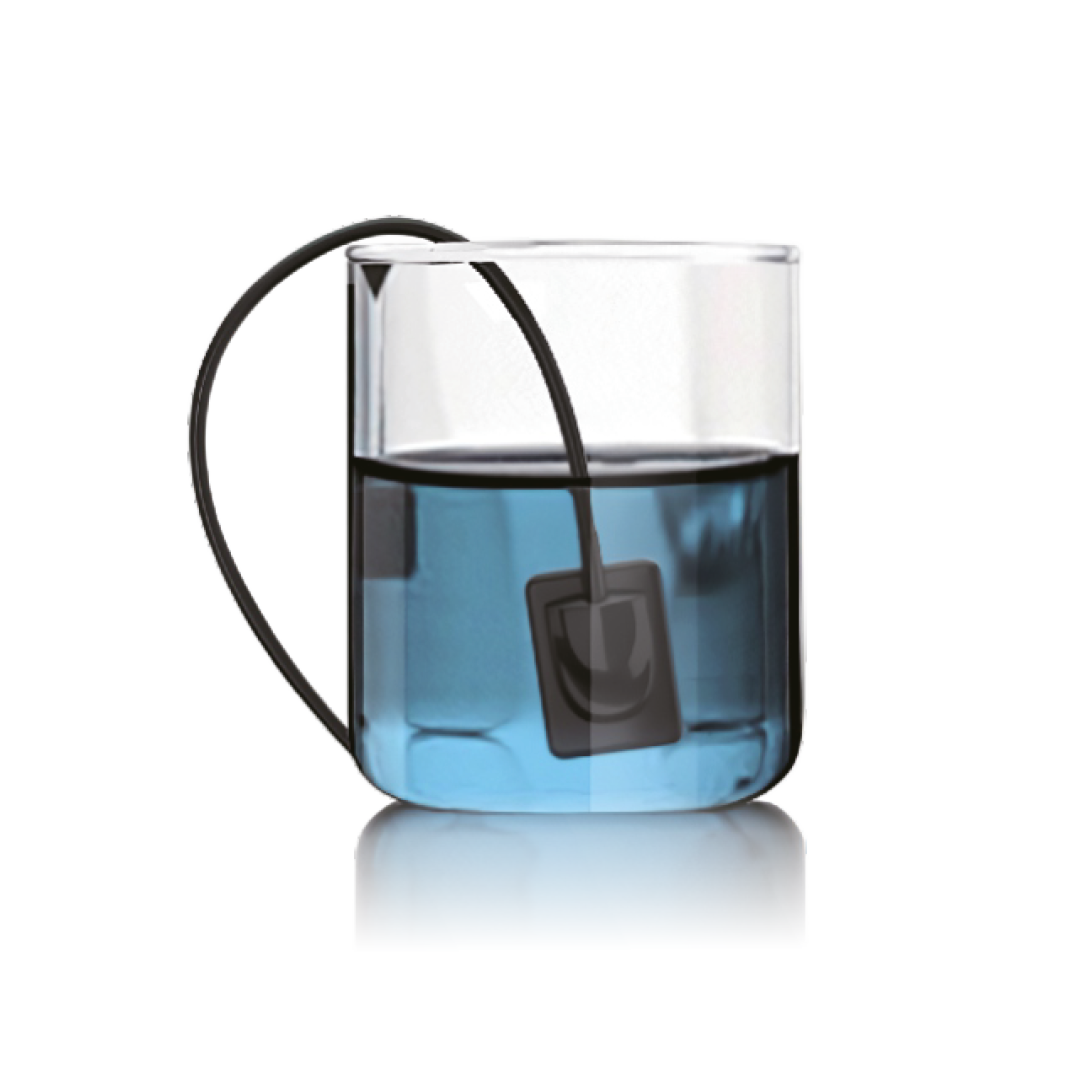

2. Easy To Clean And Strong Bending Resistance
3. Superfine Conductive Copper Wire
4. Millions Of Bending Tests
Compatibility
Applicable For Almost All X-Ray Machines On The Market
Additional information
| Manufacturer | Runyes |
|---|
